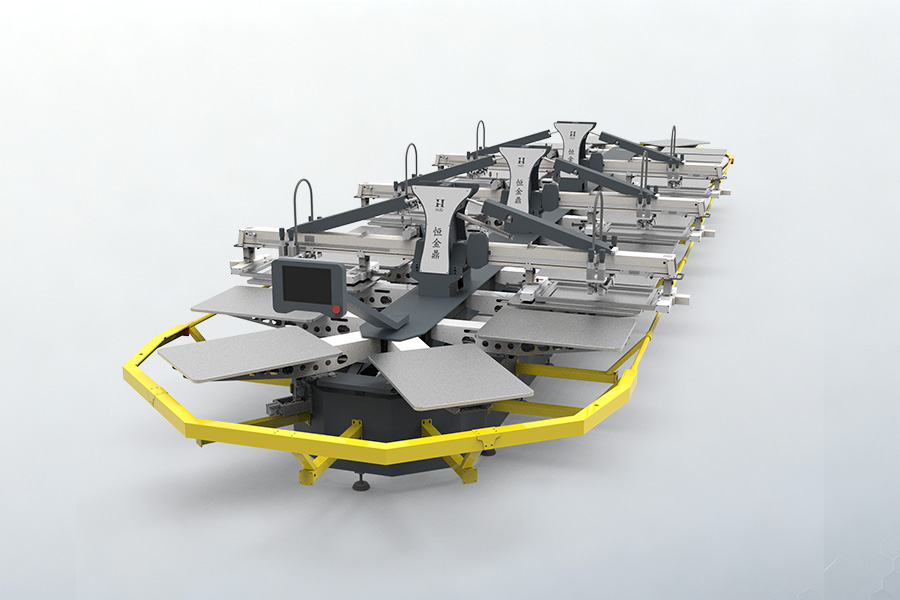

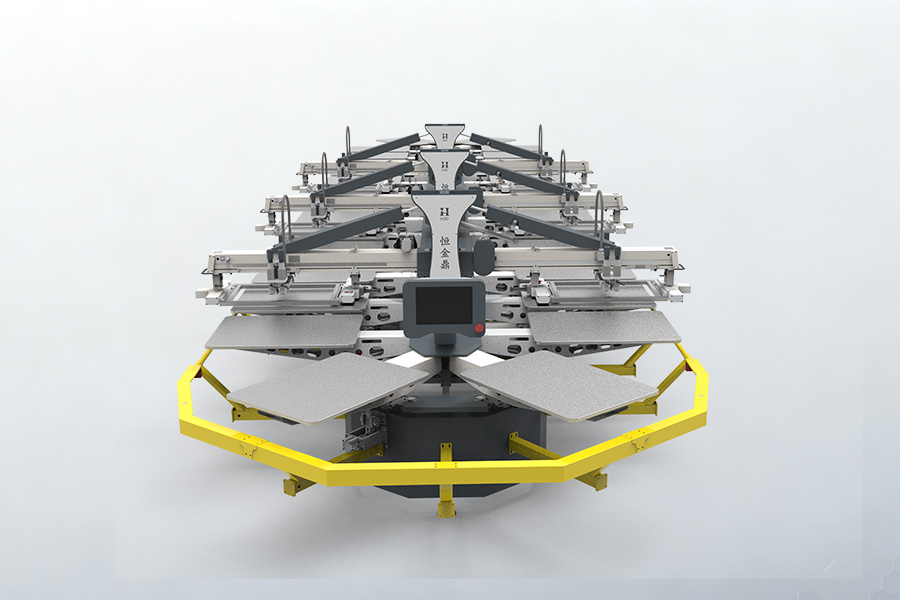

Compared to manual printing, elliptical printing machines save labor and have more stable printing quality. They can achieve multi-color one-time completion without affecting production. The elliptical printing machine has a wider applicability and more flexible operation compared to the circular turntable machine.
| Triangle positioning system | Can achieve rapid board replacement | Multi functional interface |
| The positioning system uses high-precision CNC machining centers for processing and modulation quenching treatment, ensuring an accuracy of ± 0.02mm and precise, stable, wear- resistant, and durable positioning |
It takes just a few seconds to change the pallets between ready-made clothes and cut pieces without stopping the machine. It maintains levels automatically |
Each print head can be independently controlled, with a simple interface and easy operation |
 |
 |
 |

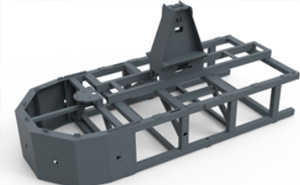

| Steel frame structure | Honeycomb tabletop | sensor |
| By using precision laser cutting equipment and high-precision CNC machining centers, the accuracy of the frame can reach ± 0.03mm. The frame is made of 60 * 80 high-strength steel pipes, which have strong load-bearing capacity and excellent structural stability; The gantry is made of T12mm high-strength steel, which has excellent welding performance and is not easily deformed |
Lightweight and compatible with the new car, it can effectively reduce the operating load of the machine platform, making the machine more stable and the platform run faster, which can increase production by 20%. Fast heating and cooling |
Using Taiwan Yangming sensors, it has high precision, high stability, and good anti-interference ability |
 |
 |
 |
| Flash oven | Servo drive (brand: Xinjie) | Scratching servo motor |
| Using S-shaped lamps, the heating area is larger under the same power, the light efficiency utilization rate is high, the service life is long, and it can save 40% energy |
Brand advantage: With dual program advantages: screen printing, matching, and adjustment, saving half of the cost, and only one person is needed for fabric pasting and collection |

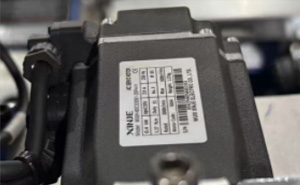

Using Xinjie servo motors, it has high positioning accuracy, fast response speed, strong vibration suppression ability, and a good overload protection mechanism to ensure stable operation of the equipment even under high load conditions |
 |
 |
 |
| Scraper cylinder | Taiwan original chain | Super strong connecting position |

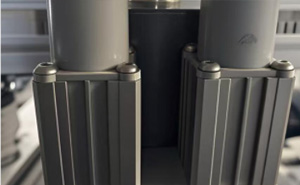

| The cylinder uses the internationally renowned brand: Yadeke, which has high precision, high stability, excellent sealing performance, and longer service life |

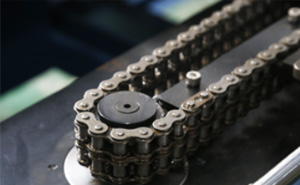

Double row chain, high quality, small clearance, smoother transmission |
The connection part adopts 12.9 grade high-strength bolts and industrial grade high-strength anaerobic adhesive to ensure that there will be no looseness or deformation, and the connection is more stable |
 |
 |
 |

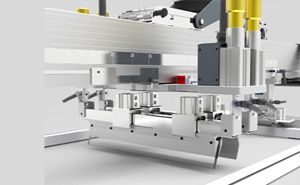

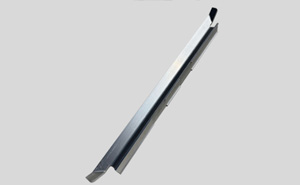

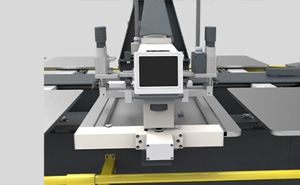

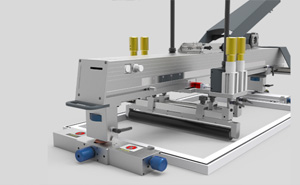

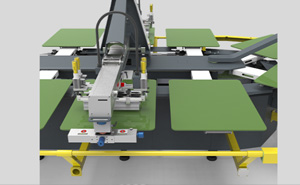

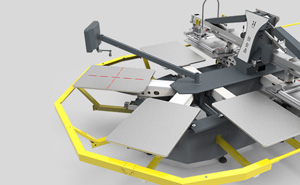

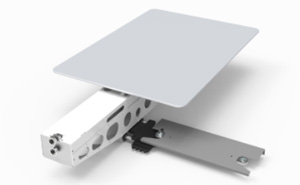

| Pallet cover | Pressing roller | Scraper pneumatic clamping |
| 1. Protect pallet 2. It has good adhesion 3. Easy to clean |
1. Press evenly to ensure accurate and clear printing patterns 2. Soft material contact to reduce machine damage |
1. Easy to operate 2. Accurate pressure control 3. Easy to integrate into automation |
 |
 |
 |
| Frame pneumatic clamping | Cross laser light | Automatic lifting of print head |
| 1. Easy to operate 2. Accurate pressure control 3. Easy to integrate into automation |
1. High positioning accuracy 2. Easy and fast operation 3. Good visibility 4. Facilitating quality control |
1. Improve production efficiency 2. Reduce manual operation 3. Uniformly apply pressure to improve printing quality |
 |
 |
 |

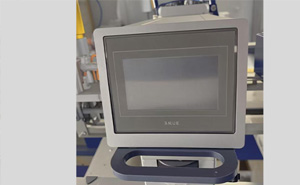

| Print head touch screen | Automatic plate registered | New ink return scraper |

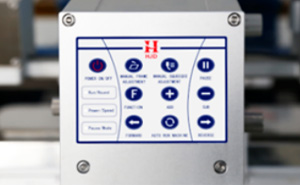

| 1. Convenient and intuitive operation 2. Real time status display 3. Fault diagnosis function |
1. Improve production efficiency and save proofreading time 2. Reduce production costs |
Reduce weight and pulp usage |
 |
 |
 |
| platen | 6061-T651(lmported from Korea) |
| cylinder | Inovance(Taiwan |
| servo motor | Xinje |

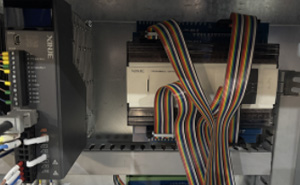

| PLC control program | Xinje |
| Touch Screen | Xinje |
| bearing | Harbin Bearing |
Japan lK0 |
|

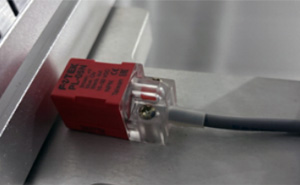

| proximity switch | Fotek |
Omron |
|
| Low Voltage Apparatus | Carlo gavazzi |
Chet |
|
| switch power supply | schneider |
