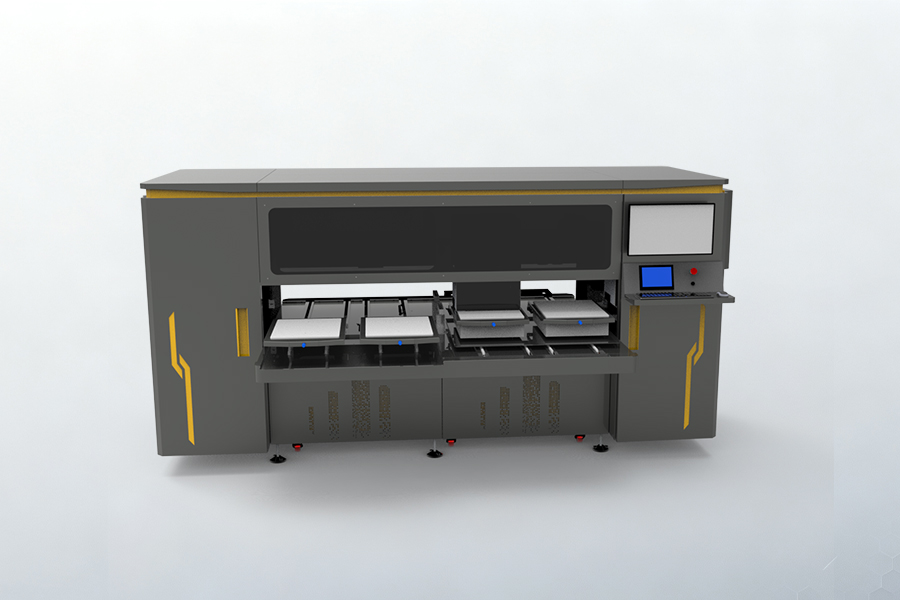

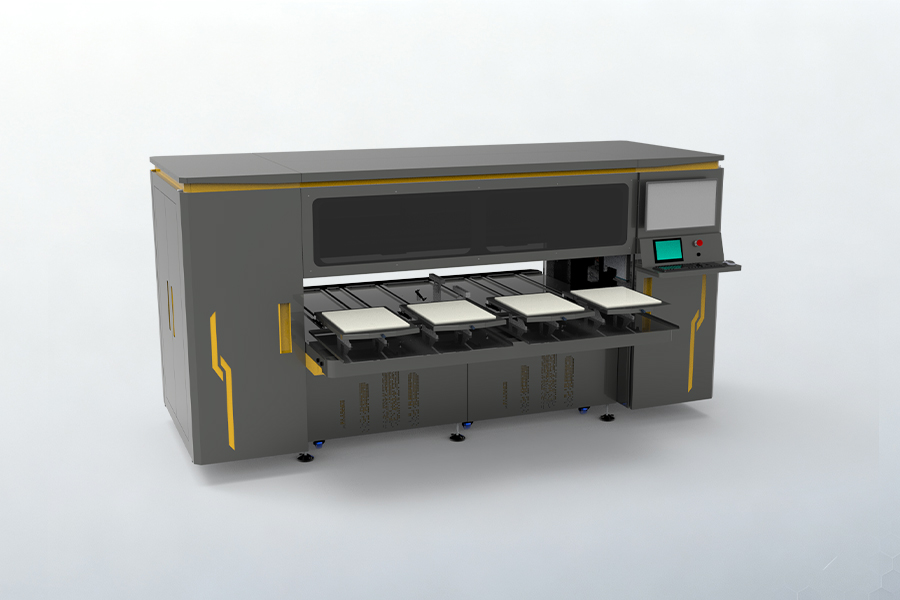

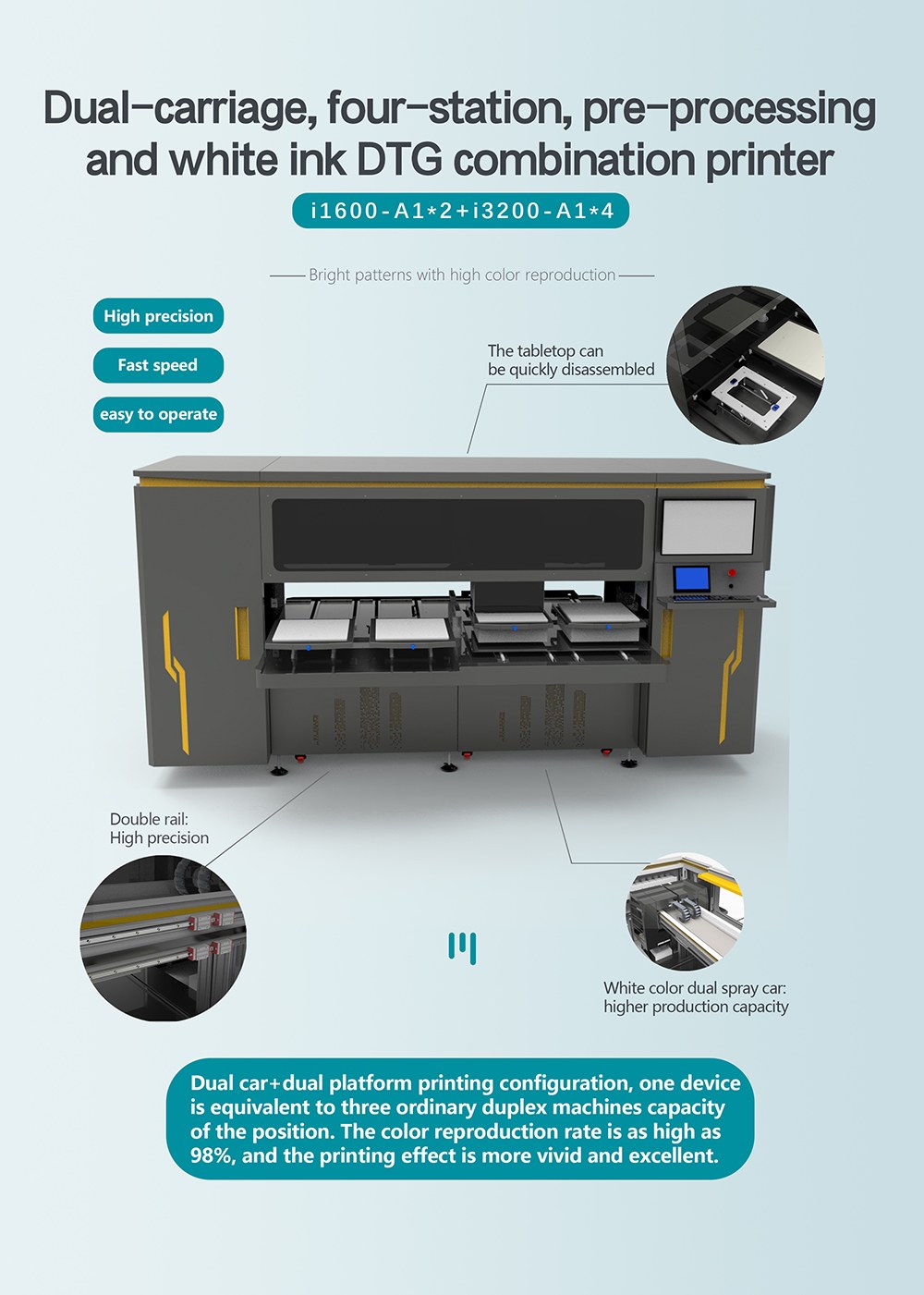

Dual car+dual platform printing configuration, one device is equivalent to three ordinary duplex machines capacity of the position. The color reproduction rate is as high as 98%, and the printing effect is more vivid and excellent.
share to:
Dual car+dual platform printing configuration, one device is equivalent to three ordinary duplex machines capacity of the position. The color reproduction rate is as high as 98%, and the printing effect is more vivid and excellent.
 |
 |
 |
 |
 |

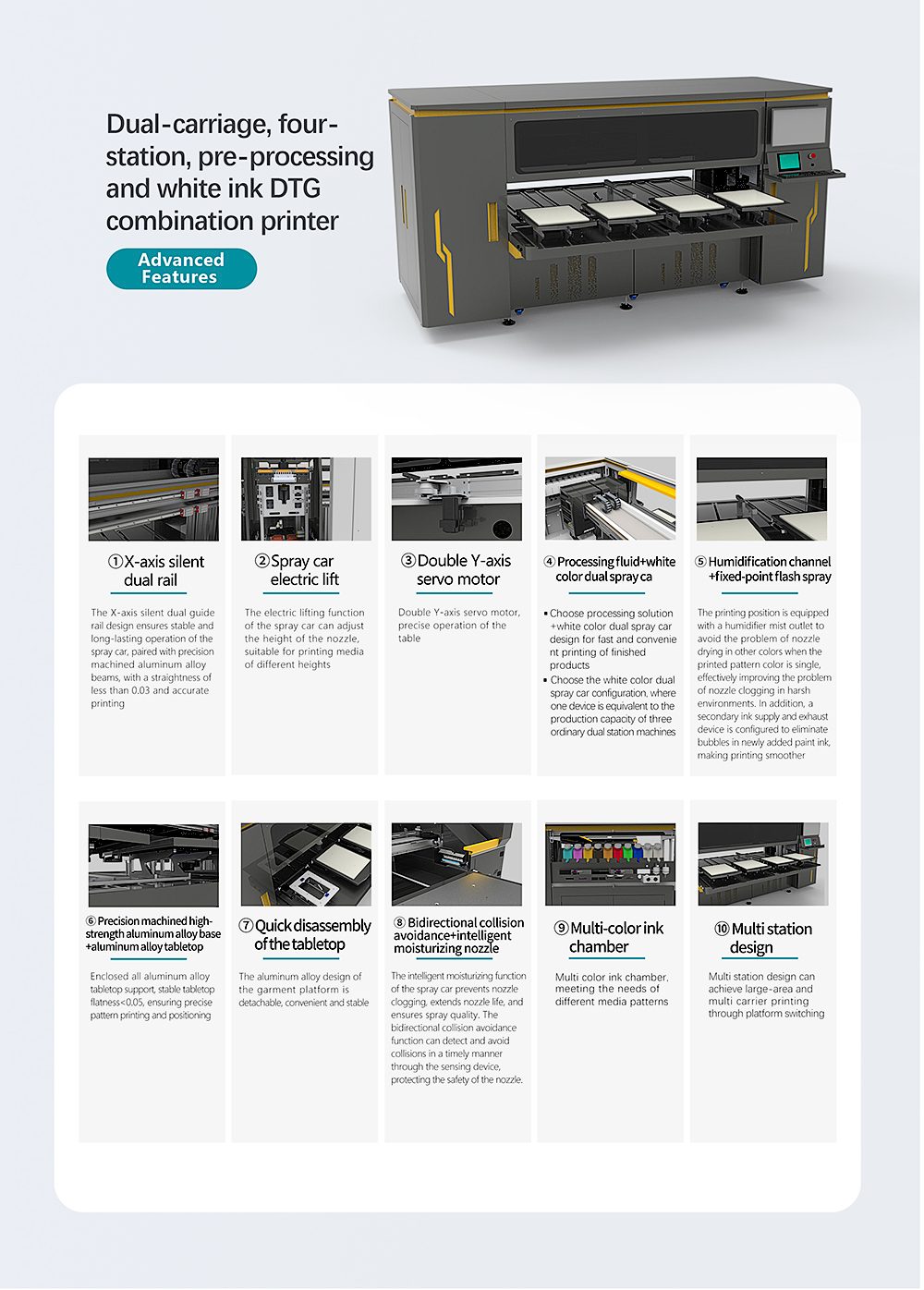

| ①X-axis silent dual rail |
②Spray car electric lift |
③Double Y-axis servo motor |

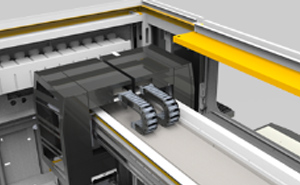

④ Processing fluid+white color dual spray ca |
⑤ Humidification channel +fixed-point flash spray |

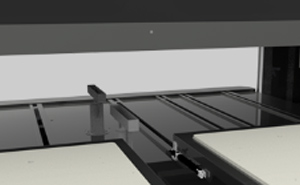

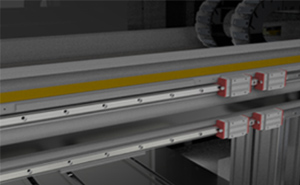

| The X-axis silent dual guide rail design ensures stable and long-lasting operation of the spray car, paired with precision machined aluminum alloy beams, with a straightness of less than 0.03 and accurate printing |

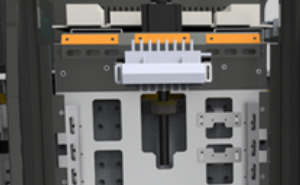

The electric lifting function of the spray car can adjust the height of the nozzle, suitable for printing media of different heights |
Double Y-axis servo motor, precise operation of the table |
Choose processing solution +white color dual spray car design for fast and convenie nt printing of finished products Choose the white color dual spray car configuration, where one device is equivalent to the production capacity of three ordinary dual station machines |
The printing position is equipped with a humidifier mist outlet to avoid the problem of nozzle drying in other colors when the printed pattern color is single, effectively improving the problem of nozzle clogging in harsh environments. In addition, a secondary ink supply and exhaust device is configured to eliminate bubbles in newly added paint ink, making printing smoother |
 |
 |
 |
 |
 |

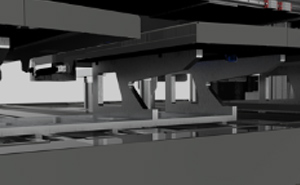

| ⑥ Precision machined high- strength aluminum alloy base +aluminum alloy tabletop |
⑦ Quick disassembly of the tabletop |
⑧ Bidirectional collision avoidance+intelligent moisturizing nozzle |

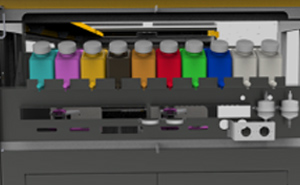

⑨Multi-color ink chamber |
⑩ Multi station design |

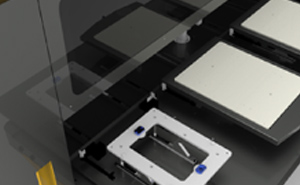

| Enclosed all aluminum alloy tabletop support, stable tabletop flatness<0.05, ensuring precise pattern printing and positioning |
The aluminum alloy design of the garment platform is detachable, convenient and stable |

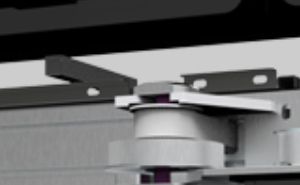

The intelligent moisturizing function of the spray car prevents nozzle clogging, extends nozzle life, and ensures spray quality. The bidirectional collision avoidance function can detect and avoid collisions in a timely manner through the sensing device, protecting the safety of the nozzle. |
Multi color ink chamber, meeting the needs of different media patterns |
Multi station design can achieve large-area and multi carrier printing through platform switching |

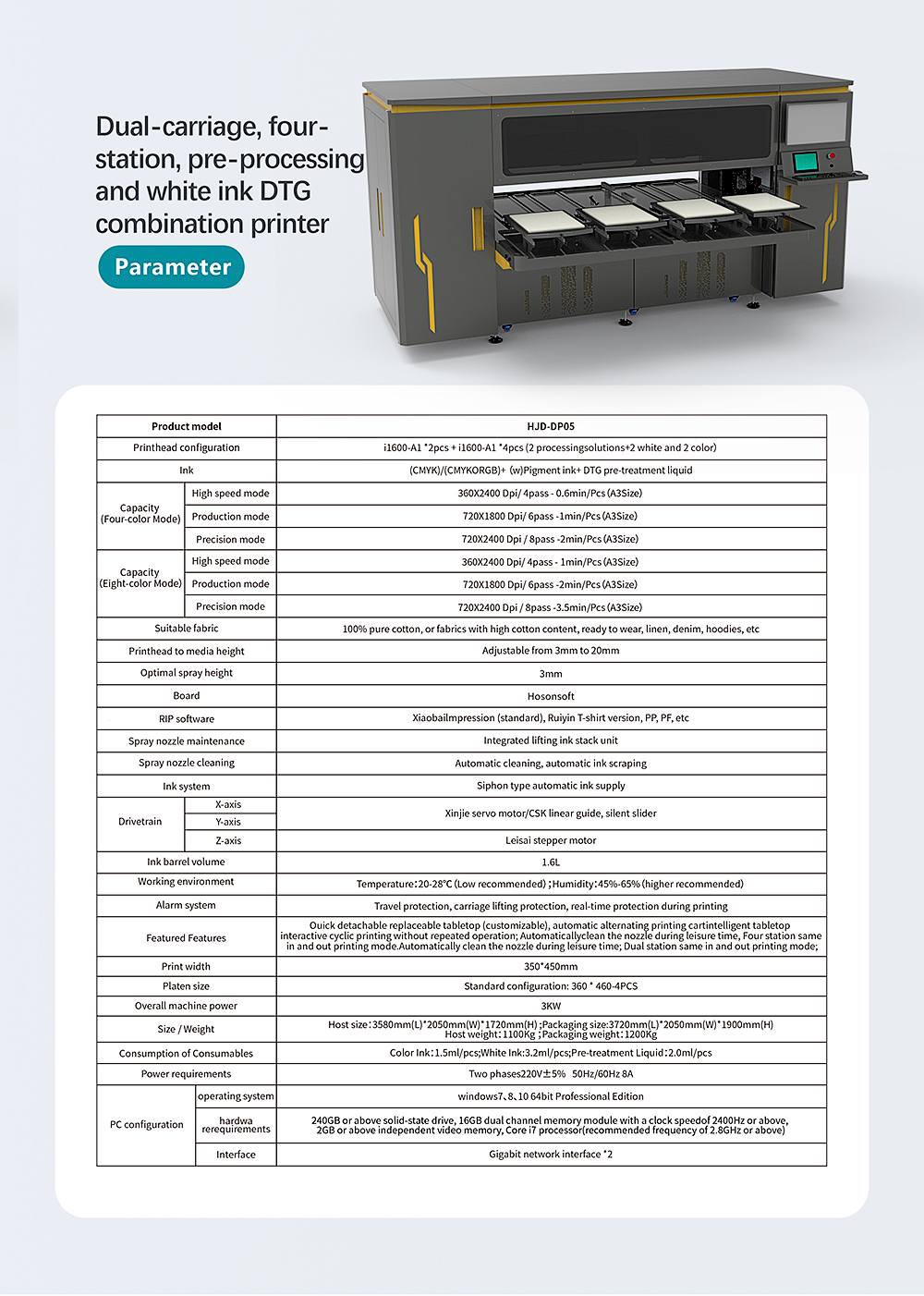

| Motion unit linear guide rail | Motion unit linear guide rail |
| Bearing | Bearing |
| Stepping motor | Leadshine |
JMC |
|
| Photoelectric sensor | Omron(Japan) |
| Switch power supply | MW(Taiwan) |
| Button Switch | Jongbo |
| Relay | Carlo gavazzo |
| Spring terminal | UTL |
| Contactor | CHNT |
| Printhead | Epson |
| Ink pump | SYPDA |
| RIP Software | XBYX |
