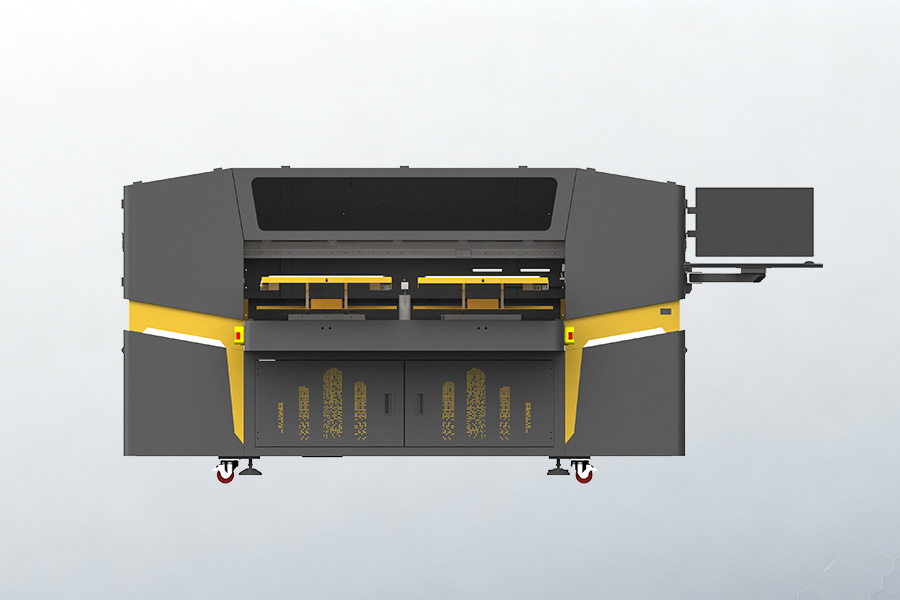

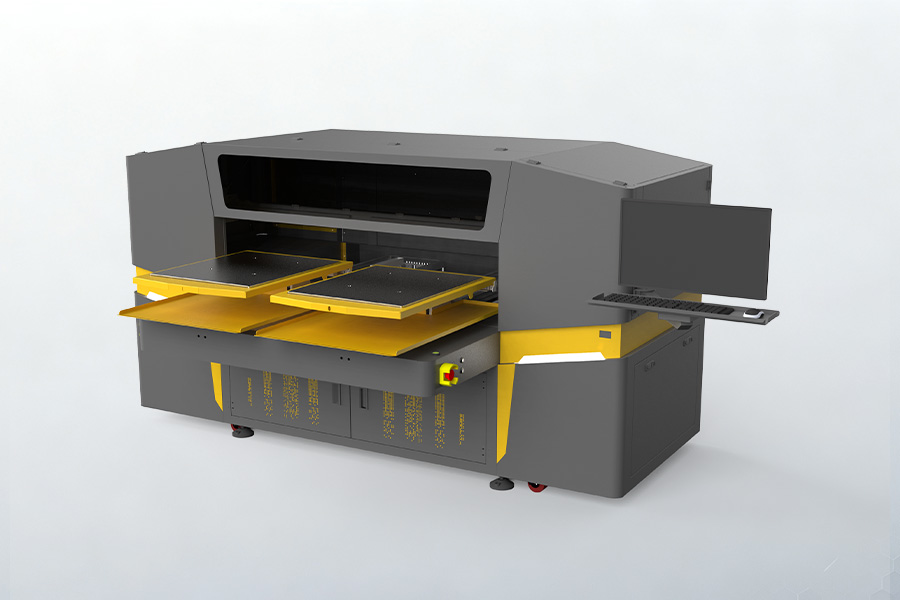

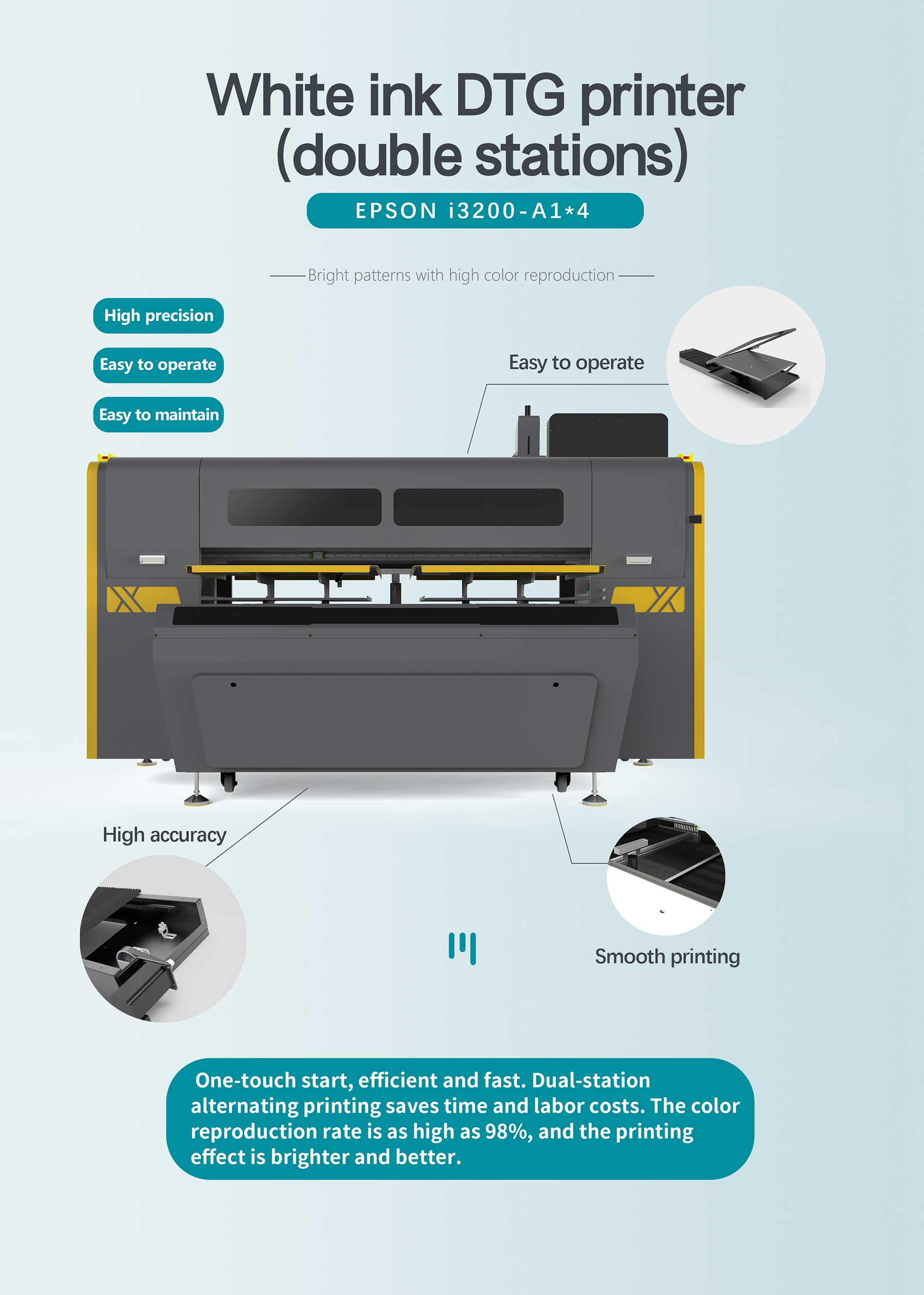

One-touch start, efficient and fast. Dual-station alternating printing saves time and labor costs. The color reproduction rate is as high as 98%, and the printing effect is brighter and better.
share to:
One-touch start, efficient and fast. Dual-station alternating printing saves time and labor costs. The color reproduction rate is as high as 98%, and the printing effect is brighter and better.
 |
 |
 |
 |
 |

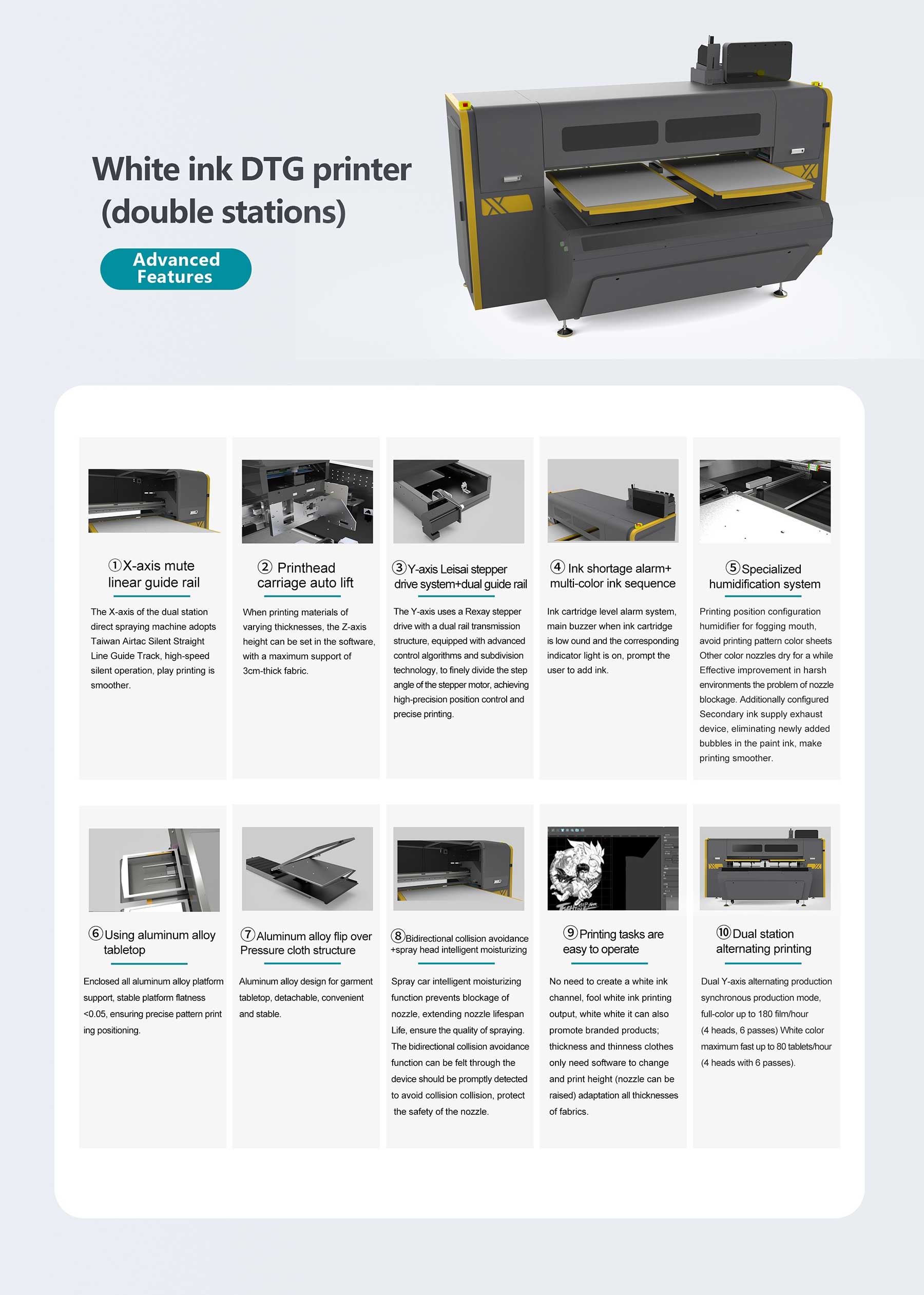

| ①X-axis mute linear guide rail |
② Printhead carriage auto lift |

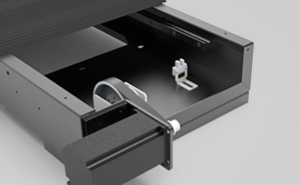

③Y-axis Leisai stepper drive system+dual guide rail |
④ Ink shortage alarm+ multi-color ink sequence |
⑤Humidification channel +fixed-point flash spray |

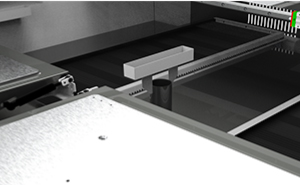

| The X-axis of the dual station direct spraying machine adopts Taiwan Airtac Silent Straight Line Guide Track, high-speed silent operation, play printing is smoother. |

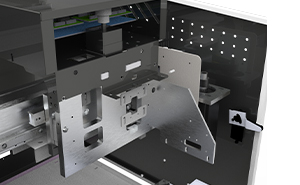

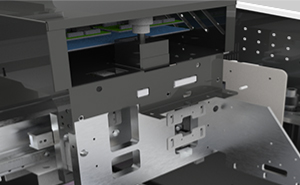

The electric lifting function of the spray car can be adjusted adjustable nozzle height, suitable for different applications high demand for medium printing. |
The Y-axis uses a Rexay stepper drive with a dual rail transmission structure, equipped with advanced control algorithms and subdivision technology, to finely divide the step angle of the stepper motor, achieving high-precision position control and precise printing. |

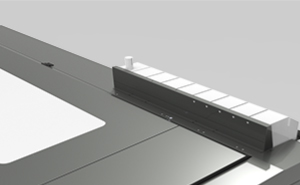

Ink cartridge level alarm system, main buzzer when ink cartridge is low ound and the corresponding indicator light is on, prompt the user to add ink. |
Printing position configuration humidifier for fogging mouth, avoid printing pattern color sheets Other color nozzles dry for a while Effective improvement in harsh environments the problem of nozzle blockage. Additionally configured Secondary ink supply exhaust device, eliminating newly added bubbles in the paint ink, make printing smoother. |
 |
 |
 |
 |
 |
| ⑥Using aluminum alloy tabletop |

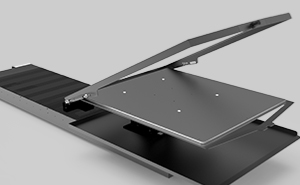

⑦Aluminum alloy flip over Pressure cloth structure |

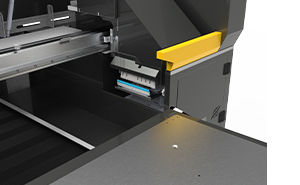

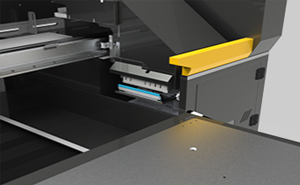

⑧Bidirectional collision avoidance +spray head intelligent moisturizing |

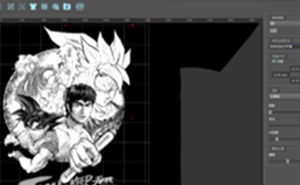

⑨Printing tasks are easy to operate |

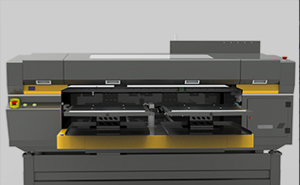

⑩Dual station alternating printing |
| Enclosed all aluminum alloy platform support, stable platform flatness <0.05, ensuring precise pattern print ing positioning. |

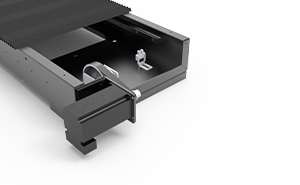

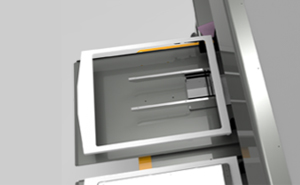

Aluminum alloy design for garment tabletop, detachable, convenient and stable. |
Spray car intelligent moisturizing function prevents blockage of nozzle, extending nozzle lifespan Life, ensure the quality of spraying. The bidirectional collision avoidance function can be felt through the device should be promptly detected to avoid collision collision, protect the safety of the nozzle. |
No need to create a white ink channel, fool white ink printing output, white white it can also promote branded products; thickness and thinness clothes only need software to change and print height (nozzle can be raised) adaptation all thicknesses of fabrics. |
Dual Y-axis alternating production synchronous production mode, full-color up to 180 film/hour (4 heads, 6 passes) White color maximum fast up to 80 tablets/hour (4 heads with 6 passes). |

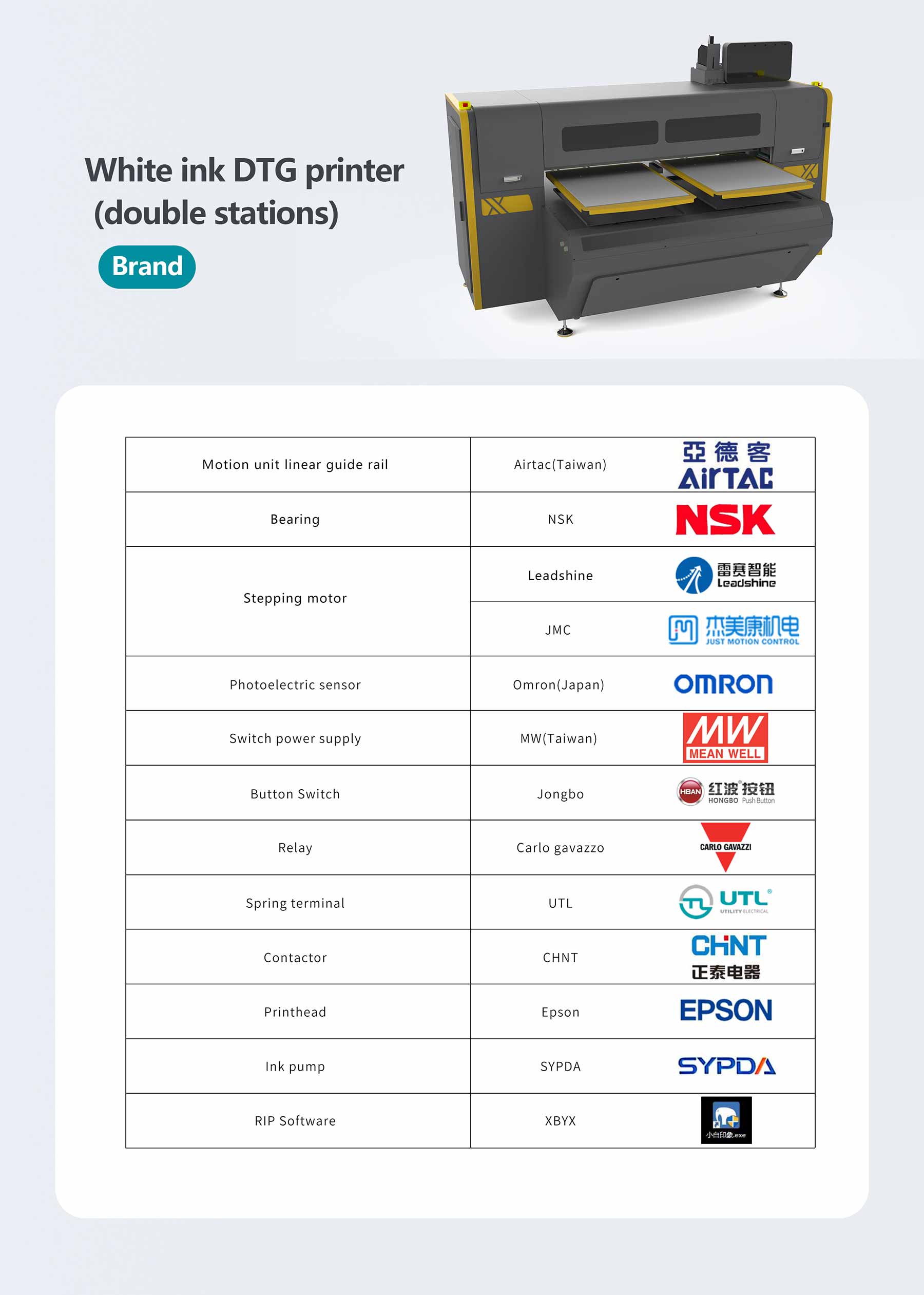

| Motion unit linear guide rail | Airtac(Taiwan) |
| Bearing | NSK |
| Stepping motor | Leadshine |
JMC |
|
| Photoelectric sensor | Omron(Japan) |
| Switch power suppｌy | MW(Taiwan) |
| Button Switch | Jongbo |
| Relay | Carlo gavazzo |
| Spring terminal | UTL |
| Contactor | CHNT |
| Printhead | Epson |
| Ink pump | SYPDA |
| RIP Software | XBYX |
