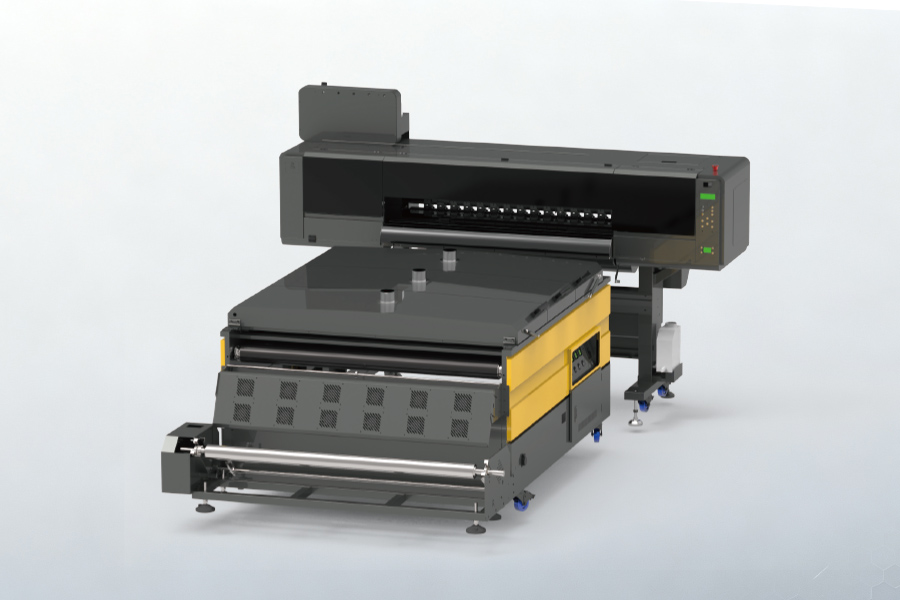

DTF Printer (Epson i3200-A1*8)

DTF Printer (Epson i3200-A1*8)

DTF Printer (Epson i3200-A1*8)

share to:

[addthis tool="addthis_inline_share_toolbox_z5iy"]

Chat Now Contact

Description Gallery Details Related Products

Description

Machine parameters

Nozzle conguration		i3200-A1 X 8
ink		Four color (CMYK)/eight color (CMYK)+white DTF paint ink
Suitable fabric		Various fabrics including polyester, nylon, cotton, silk, knitted, woven, non-woven, Oxford cloth, etc
Capacity (four-color mode/130cm)	production mode	360X2400 Dpi/ 4pass – 80m²/h
	Precision Mode	720X1800 Dpi/ 6pass – 37m²/h
Capacity (eight color mode/130cm)	production mode	360X1200 Dpi/ 4pass – 80m²/h
	Precision Mode	360X1800 Dpi/ 8pass – 37m²/h
Capacity (12 color mode/130cm)	production mode	720X1800 Dpi/ 6pass – 21m²/h
	Precision Mode	720X2400 Dpi / 8pass -13m²/h
The optimal spraying height of the nozzle		1.8mm
Rip Software		Maintop/Ruiyin/Flexi 22 (optional)/PrintFactory (optional)/Xiaobai Impression (optional)/Cadlink (optional)
Spray nozzle maintenance		Maintenance free integrated lifting ink stack
Spray nozzle cleaning		Fully automatic cleaning, fully automatic ink scraping
ink supply system		Siphonic positive and negative pressure ink supply system
drive system	x-axis	Rexay (Jiemeikang) stepper integrated motor/Airtac linear guide, silent slider
	y-axis	Rexay (Jiemeikang) stepper integrated motor/Airtac linear guide, silent slider
	Ink stack	stepping motor

Ink bucket capacity		1500ml
work environment		20~28℃ 45%~65% Temperature: 20-28 ℃ (preferably low); Humidity: 45%~65% (preferably high)
alarm system		Travel protection, spray collision prevention, ink shortage alarm, film shortage alarm and shutdown
Featured Features		White ink pot shaking, full channel circulation of white ink, automatic cleaning during idle time, no channel white ink printing (optional), full-color ICC (optional), film printing (optional)
max print width		120cm
Whole machine power		1500W
Whole machine size		2600L850W1650H
Weight		340KG
Power requirements		220V±5%, 50Hz/60Hz
computer conguration	operating system	windows7、8、10 64bit
	hardware requirements	Upgrade the operating memory frequency to 3200Hz
	Interface	USB 3.0 high-speed interface/Gigabit network interface

Specifications of a 1.2-meter independent three-temperature zone powder dryer

Device type	1.3m Parameters of independent three temperature zone powder dryer	Match the model	8 head printer
Number of lamps	11 pcs	Working power supply	AC220V/50Hz 33A
Power	13KW	Packed in wooden case size	2700L1050W1000H
Outside dimensions	3250L1780W1100H	weight	450kg　Net weight 450kg 520kg　Package weight 520kg

Machine advantages

、

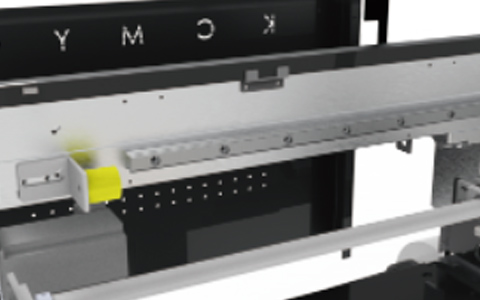

	1.X-axis aluminum alloy precision machinedcrossbeam+Yadeke highprecision silent guiderail
	2. The entire machine is controlled by a Lei Saiintegrated stepper motor, and the white colormatching is precise to within 2 threads

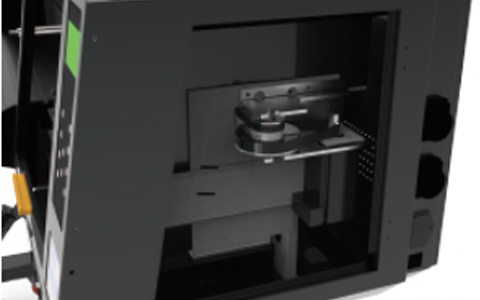

	3. The nozzle moisturizing adopts a maintenancefree integrated lifting ink stack, which is durableand protects the nozzle safety
	4. Congure lm shortage alarm shutdown. When the lmis exhausted, the electronic sensor detects a papershortage status, the software alarms and stops printing toprevent empty printing and nozzle rubbing. The printercan achieve unmanned operatione rubbing, printer canachieve unmanned operation
	5. Ink cartridge level alarmsystem,when themain ink cartridge is low on ink, the buzzer willsound and the corresponding indicator light willlight up,prompting the user to add ink

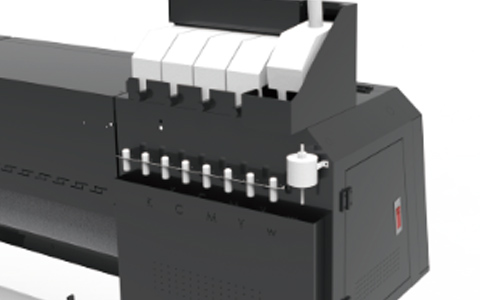

	6. White ink circulation and stirring system,Hengiinding’s unique independent shakingfunction of white ink pot, fully shaking withoutdead corners, preventing white ink sedimentationand ensuring smooth production

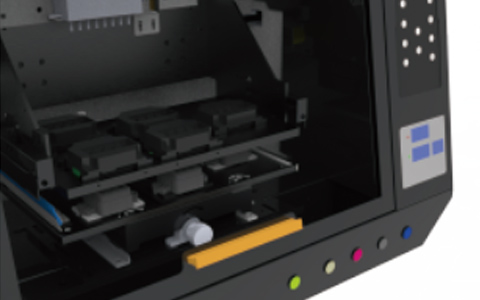

	7. The sprav car is eauipped with anti-collisionprotection svstems on both sides of the nozzle,which can auicklv stop in case of accidentalimpact or scratching of the printing lm.Themoutlet extends outward, and it will not aect thedigitalprinting when the powder dispenser isabnorma.

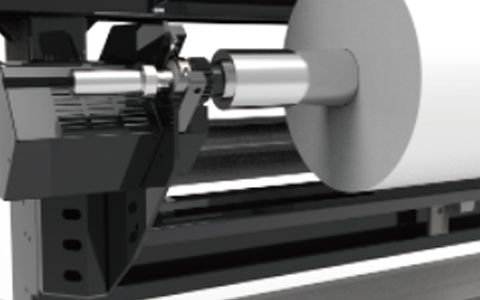

	8. Compatible with 100-300 meter large rollprinting lm,using an inatable shaft for paperplacement, and an intelligent tension adiustmentrod to ensure the accuracv of step-bv-step paperfeeding. Mass production does not reauirefreauent replacement of printing m,making itmore convenient to use

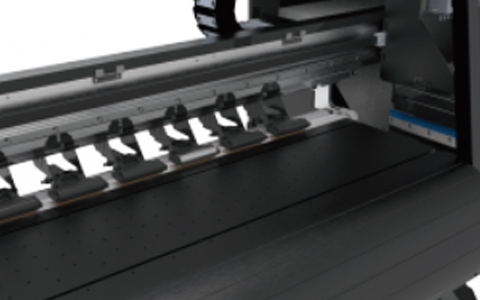

	9. The Yaxis drive uses imported uororubberLarge paper pressing wheel,which does notgenerate static electricitv. It does not need toadiust the step again to change the lm at will.so as to ensure that the single facial mask movesstablv without slipping and does not damage theprinting surface of the hotstamping 1m

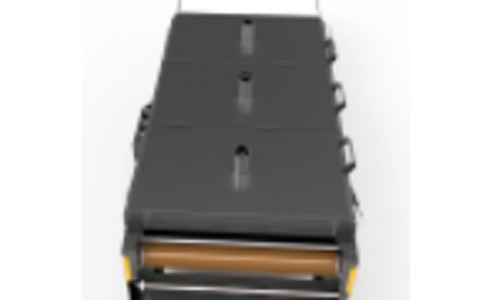

	1. Double drying of the front guide plate andindependent temperature control of the three-layerpartition of the rear oven, with precise control; Ultralong drying,more uniform powder melting,preventing oil and water return
	2. Three temperature smoke collection,collecting oil fumepreventing cooling oil fumesfrom owing back
	3.Drying outlet dual row cold air cooling, rapidcooling before winding

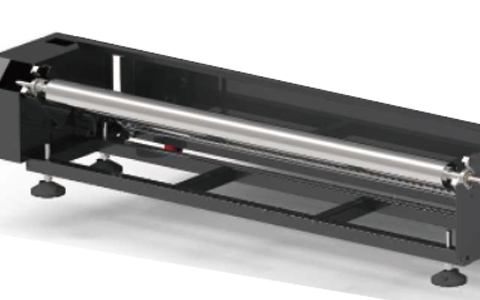

	4. Dual power paper feeder for tighter windingwithout deviation
